The TK417 is a compact 55g multi-functional 4G LTE CAT1 vehicle tracker featuring GPS, BDS, GLONASS, Galileo, QZSS satellite positioning plus WiFi and LBS for seamless indoor/outdoor coverage. With a modular 9-pin wiring architecture supporting 6 hardware configurations, built-in relay for remote engine cut, electronic key security, and IP54-rated enclosure, the TK417 is engineered for fleet management, cold chain monitoring, driver identification, and vehicle security across global LTE CAT1 networks.
TK417 4G LTE CAT1 Multi-Functional GPS Vehicle Tracker with Modular I/O and Seamless Indoor/Outdoor Positioning
Compact 55g vehicle tracker with modular 9-pin I/O, GPS/BDS/GLONASS/Galileo/WiFi/LBS positioning, built-in relay, and electronic key security for global fleet management.
- 6 configurable hardware modules — SOS, battery, GPIO, iButton, BLE gateway, T&H
- WiFi indoor positioning + multi-constellation GNSS
- Built-in relay for remote engine cut with safety interlock
- 9–48V wide voltage — cars, trucks, e-vehicles
- EELINK Protocol 2.3 with firmware OTA
Overview
The TK417 combines 4G LTE CAT1 connectivity, multi-mode positioning, and modular hardware in a 55-gram IP54 enclosure.
4G LTE CAT1 Global
19 FDD + 5 TDD bands. North America, Europe, APAC, LATAM, Middle East on a single SKU.
5-Mode GNSS Positioning
GPS + BDS + GLONASS + Galileo + QZSS with A-GNSS. 5–15m accuracy. Hot start <3s.
WiFi + LBS Fallback
WiFi 2.4GHz indoor positioning. LBS cell tower fallback in GNSS-denied areas.
Modular 9-PIN I/O
PINs 4–7 support 6 modules: SOS, battery, GPIO, iButton, BLE gateway, T&H probes.
Remote Engine Control
Built-in relay for engine cut/restore. Safety interlock prevents cut above 20 km/h.
Electronic Key Security
Offline vehicle start via iButton or BLE. Blocks unauthorized engine starts.
Vehicle Control & Safety
Active vehicle control and alarm capabilities for fleet security and driver safety.
Remote Engine Cut
Cut/restore via platform or SMS
Electronic Key Auth
Offline iButton/BLE authorization
ACC Detection
Real-time ignition monitoring
Overspeed Auto-Cut
Auto fuel cut, auto-recovery
Vibration & Collision
3-axis accelerometer detection
Geo-fence Alert
Enter/exit zone notifications
Power Disconnect
Instant tamper/removal alarm
Shift Alarm
Unauthorized movement detection
Applications
From logistics to e-vehicles, TK417 adapts through modular hardware and 9–48V wide voltage.
Fleet & Logistics
Real-time location, ACC monitoring, overspeed alerts, driver ID. Trip reports and route replay.
Cold Chain Transport
T&H probes or BLE beacons for continuous cargo monitoring. Threshold alarms for compliance.
Vehicle Security
Electronic key immobilizer, remote engine cut, vibration alarm, geo-fence for anti-theft.
E-Vehicles & Equipment
9–48V covers cars, trucks, golf carts, e-scooters. 97×40×15.5mm concealed install.
Technical Specifications
Validated against Eelink TK417 datasheet.
| Category | Detail |
|---|---|
| General | |
| Product name | TK417 — Multi-Functional 4G LTE CAT1 GPS Vehicle Tracker |
| Dimensions | 97(L) × 40(W) × 15.5(H) mm |
| Weight | 55g |
| Ingress protection | IP54 |
| Protocol | EELINK Protocol 2.3, TCP/UDP, Firmware OTA |
| Cellular Network | |
| Cellular | 4G LTE CAT1 |
| LTE-FDD bands | B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/66/71 |
| LTE-TDD bands | B34/38/39/40/41 |
| Bluetooth | BLE 2.4GHz |
| WiFi | WiFi 2.4GHz |
| Positioning | |
| GNSS | GPS / BDS / GLONASS / Galileo / QZSS + A-GNSS |
| GNSS accuracy | 5–15 m (satellite) · >100 m (LBS) |
| Start time | Hot: <3s · Warm: <26s · Cold: <35s |
| Indoor positioning | WiFi 2.4GHz + LBS cell tower |
| Power | |
| Input voltage | 9–48V DC (12V/24V/36V/48V) |
| Work current | 800mA (LTE CAT1 active) |
| Standby current | Off: 20μA · Sleep: 3mA · Idle: 22mA |
| Backup battery | 200mAh built-in |
| I/O & Control | |
| ACC detection | Yes (PIN3) |
| Relay | Built-in (PINs 8–9) — engine cut/restore Safety interlock <20 km/h · Auto-cut on overspeed |
| GPIO | 2× (PINs 4–5) — serial/digital I/O |
| Configurable | PINs 6–7: SOS | Battery | iButton | GPIO PINs 4–7: BLE Gateway | T&H Probes |
| Environmental | |
| Temperature | -20°C to +75°C · 20%–90% RH |
| Alarms | SOS, vibration, shock, overspeed, shift, geo-fence, power disconnect, low battery, T&H |
Last updated: March 2026 · Specifications subject to change without notice.

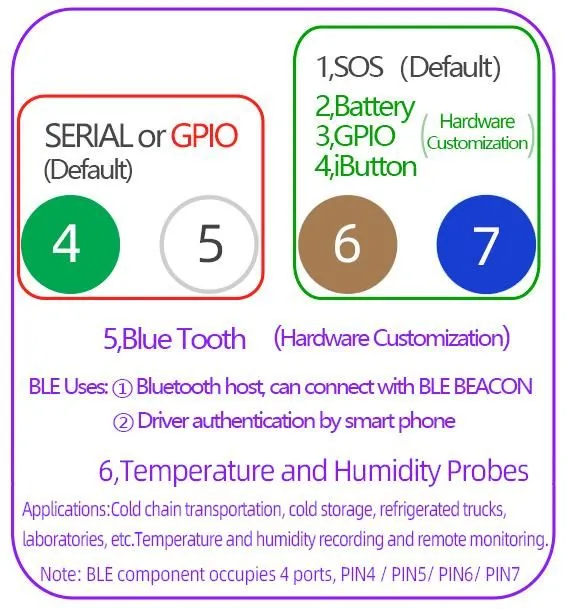

Hardware Modules
Choose 1 of 6 configurations at order time. PINs 1–3 and 8–9 are fixed.
SOS Emergency Button
3× auto-dial. Platform & SMS alarm.
External Battery Pack
Extended backup for high-uptime.
GPIO Expansion
Digital I/O for custom sensors.
iButton Driver ID
Contact-based auth & immobilizer.
BLE Beacon Gateway
BTT01/DB01 cold chain scanning.
T&H Sensor Probes
Wired temperature & humidity.
Components & Accessories
TK417 ships with power cable and built-in relay. Optional modules at order time.
Power Cable
Default

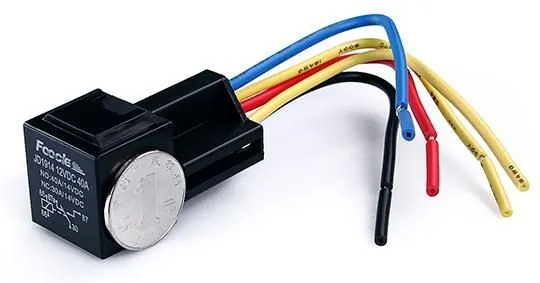

Relay
Built-in

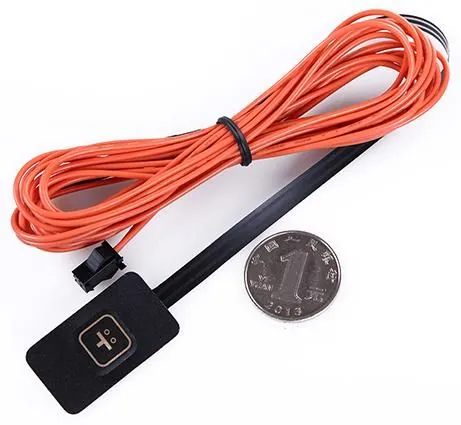

SOS Button
Option ①
iButton
Option ④
External Battery
Option ②
BLE Temp Beacon
Option ⑤
T&H Probes
Option ⑥
LED Indicators
Red: GSM · Blue: GNSSFrequently Asked Questions
Quick answers about TK417 deployment, connectivity, hardware, and safety.
What cellular network does TK417 use?
4G LTE CAT1 with 19 FDD + 5 TDD bands for near-global coverage across North America, Europe, Asia-Pacific, Latin America, and the Middle East.
Does it work indoors?
Yes. WiFi 2.4GHz AP scanning provides indoor positioning. LBS cell tower fallback ensures visibility in GNSS-denied environments.
What is the modular hardware system?
9-pin wiring with configurable PINs 4–7. Choose 1 of 6 modules at order: SOS, battery, GPIO, iButton, BLE gateway, or T&H probes.
What voltage range?
9–48V DC. 12V cars, 24V trucks, 36V utility, 48V e-scooters. 200mAh backup battery for disconnect alarms.
How is TK417 installed?
Wired via 9-pin harness. Red/Black to battery, Orange to ACC, relay wires to fuel circuit. 97×40×15.5mm fits concealed locations.
Which direction should it face?
Label side (GNSS antenna) facing sky. Cellular antenna is omnidirectional.
Can it remotely disable a vehicle?
Yes. Built-in relay for engine cut via platform/SMS. Safety interlock: cut only below 20 km/h or stationary.
How does electronic key work?
Requires registered iButton or BLE credential. Works offline for anti-theft without cellular coverage.
What is the difference between TK417 and TK419?
Both are 4G LTE vehicle trackers with relay and driver ID. TK417 uses LTE CAT1 with 19+5 bands and adds WiFi indoor positioning, BLE beacon gateway for cold chain, and 6 modular hardware configurations. TK419 uses LTE FDD/TDD with 2G fallback and focuses on fleet management with iButton driver ID. TK417 is newer, smaller (55g vs 75g), and more versatile.
How does TK417 compare to other Eelink vehicle trackers?
TK417 is Eelink's most configurable vehicle tracker. Compared to TK418 (CAT-M1/NB-IoT asset tracker for stationary assets), TK417 targets moving vehicles with built-in relay and ACC detection. Compared to TK319L (Cat M1 vehicle tracker), TK417 offers wider band coverage, WiFi positioning, BLE gateway, and modular I/O. TK417's 9-48V range also covers e-vehicles that other models cannot.
